Measurement 1Eliminate Triangulation Laser Displacement Sensor

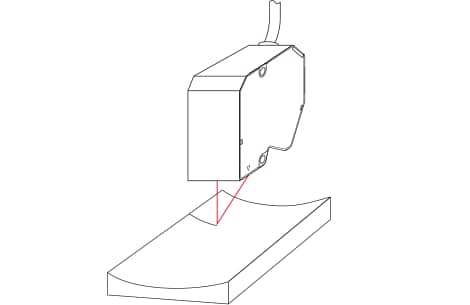

Shapes are measured by moving the target or sensor head to accumulate height data.


  • Shapes can be measured at a higher precision with 1D laser displacement sensors than with 2D laser displacement sensors.
  • A mechanism for moving the sensor head and/or target is required.
  • Vibrations from when the sensor head or target is moved causes measurement errors.
LK-G Series
  • Triangulation method.
  • World's fastest sampling rate 392 kHz.
  • 12 sensor heads can be connected.
LK-G Series
