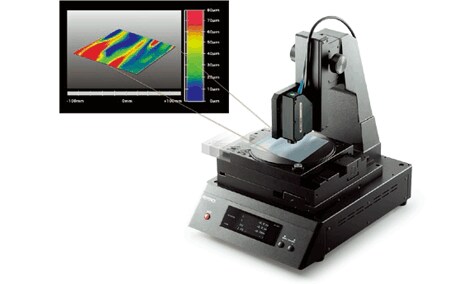

Measurement 2Triangulation Laser Displacement Sensor + X-Y Stage

High-precision 3D shape measurement is possible by combining a 1D laser displacement sensor with an X-Y stage.


  • Selective use of sensor heads enables shapes of various heights to be measured.
  • The shape of transparent 3D targets can also be measured.
LK-G Series
  • Triangulation method.
  • World's fastest sampling rate, 392 Khz.
  • 12 Sensor heads can be connected.
LK-G Series
