Measurement 2Thrubeam Optical Micrometer

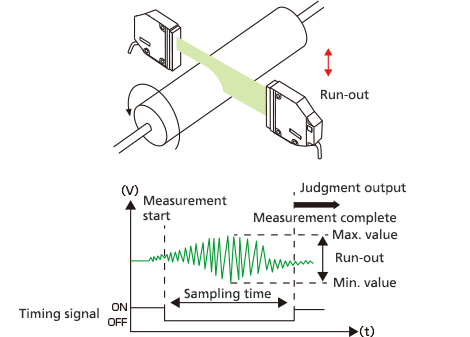

Fluctuations in the edge positions of the roll are captured through high-speed sampling.


  • The peak-to-peak value of the run-out is found using peak-to-peak hold or a similar function.
  • Measurement must be performed at a sampling rate of at least ten times the rotation speed.
LS Series
  • 1D Telecentric optical method.
  • Long service life design that is free of moving parts.
  • Fastest sampling rate in its class at 16 kHz.
  • World's fastest sampling rate, 392 Khz.
  • 12 Sensor heads can be connected.
LS Series
