Measurement 3Thrubeam 2D Optical Micrometer

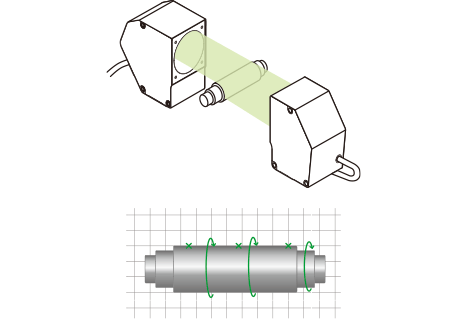

The eccentricity is measured by finding fluctuations at multiple specified point positions from the image obtained using the 2D optical projection method.


  • The run-out of V grooves and protrusions in the circumference can be measured.
  • The run-out of a point at a predetermined distance from the end can be measured.
TM Series
  • 2D Telecentric Optical Method.
  • World's first inline profile projector.
  • Simultaneous measurement of up to 16.
TM Series
