Measurement 2Laser Displacement Sensor

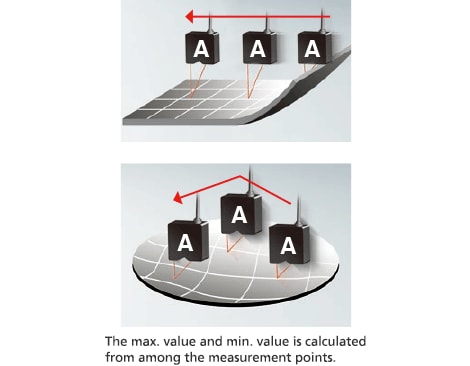

The target or sensor must be moved, warpage and flatness is calculated by the data collected at each measurement location.


  • Only one head is used, so costs can be reduced.
  • Chattering when the sensor heads are moved causes measurement errors.
  • A mechanism for moving the sensor head is required.
LK-G Series
  • Triangulation Method.
  • World's fastest sampling rate 392 kHz.
  • 12 sensor heads can be connected.
LK-G Series
