Air Efficiency Module MP-F series

New Easily Visualise Equipment Energy Consumption

  • Visualise air and electricity consumption
  • Flow × Pressure × Temperature × Humidity + Energy
  • Reduce air waste
  • Understand air quality

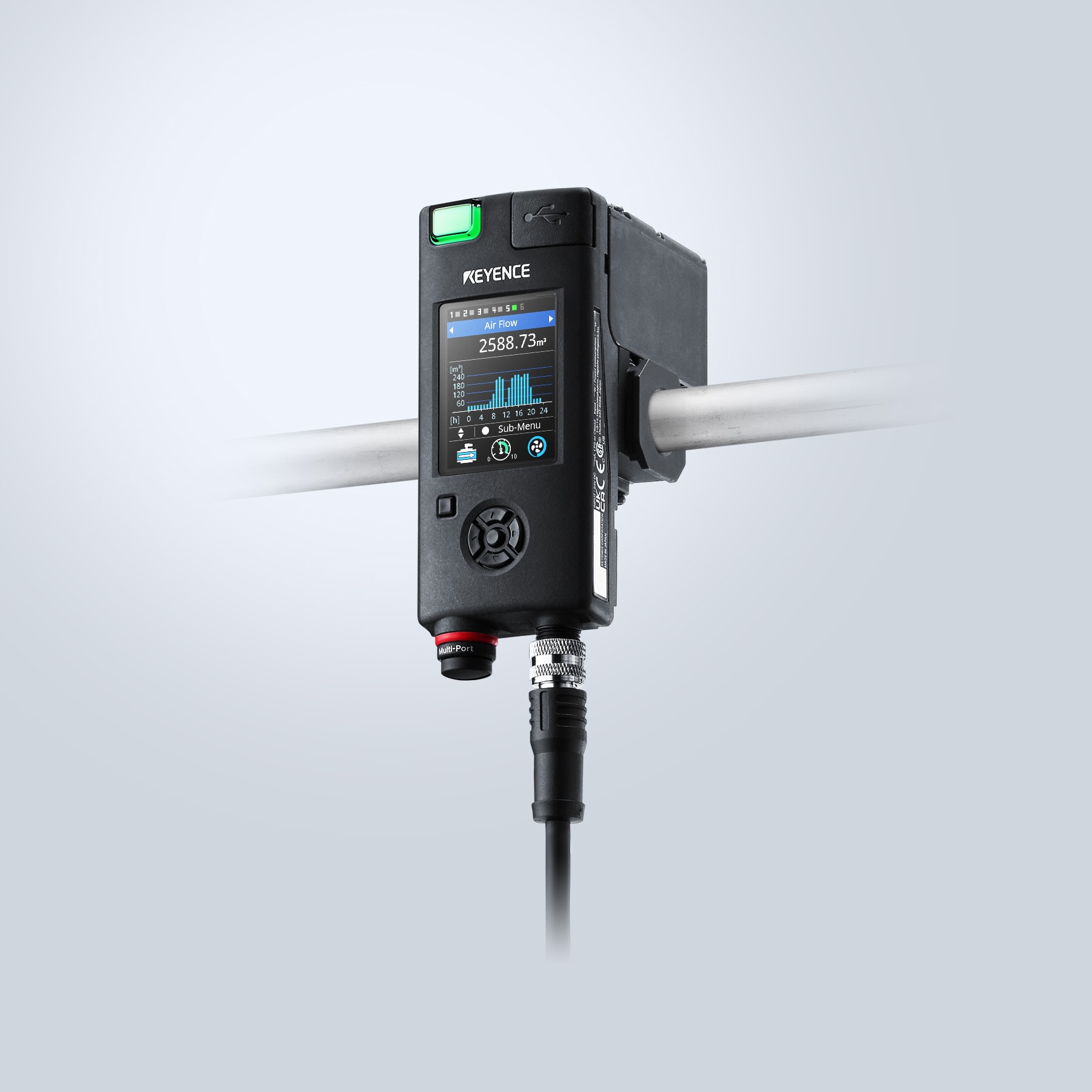

MP-F series - Air Efficiency Module

MP-F Series simultaneously senses the flow, pressure, temperature and humidity of air. This can all be visualized along with energy consumption when the connected power monitor is used. This unit is equipped with a function that automatically records the air and electricity consumption (data that is vital when attempting to reduce energy consumption) at all times. The stored data can then be checked on the highly expressive multi display. Also, data can be analysed easily with the specialised PC software. The shut-off valve is an energy-saving feature that eliminates unnecessary air consumption by blocking air when the machine is not operating. This unit monitors the air status to detect problems such as pressure drops and condensation before they occur and notify the user of these errors.

View Catalogue FD-EC/FD-EP/MP-F Series Catalogue

Price

Ask KEYENCE

+44(0)1908-696-900

+353-1-800-813-031

Features

Visualise Air and Electricity Consumption

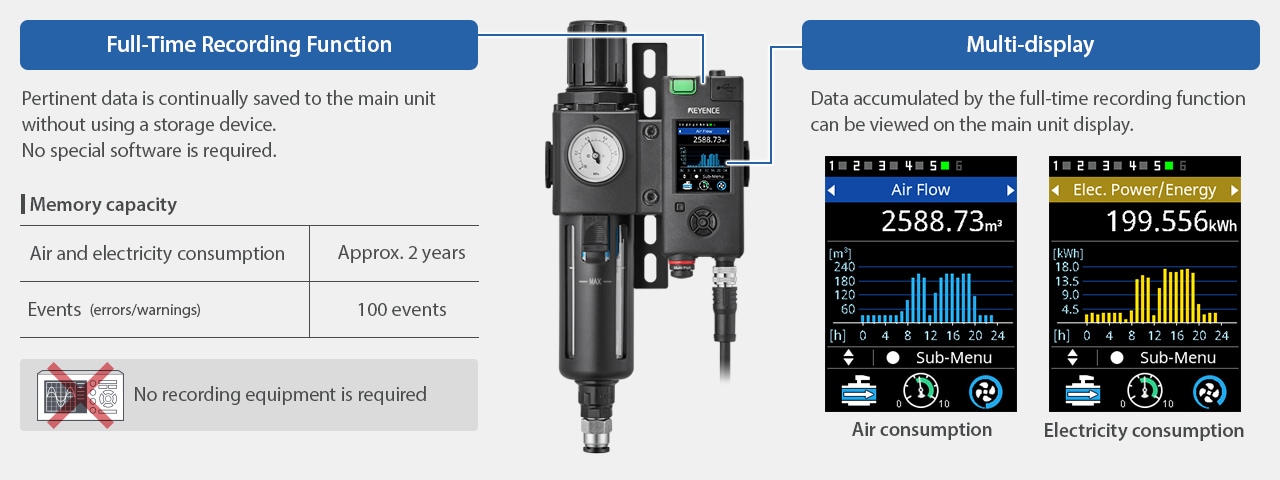

Easily visualise equipment energy consumption (air and electricity consumption*), which is important for energy conservation measures. The unit also has a “full-time recording function” that automatically records data on the main unit. Accumulated data can be viewed on an expressive multi-display.

*An energy monitor (MP-FEA1) and CT (MP-FEC) are required to measure electricity consumption

Flow × Pressure × Temperature × Humidity + Energy

The MP-F Series enables equipment energy consumption (air and electricity consumption) to be easily visualised, which is important for energy conservation measures. While doing this, the single unit can monitor air pressure, temperature, and humidity. Additionally, it comes with a shutoff valve that conserves energy by shutting off air leaks that can occur when the equipment is not in operation.

  • 1
    Flow
  • 2
    Pressure
  • 3
    Temperature
  • 4
    Humidity

Reduce Air Waste

Equipment that consumes air can generate large amounts of waste due to leaks, even when the equipment is not in use. The MP-F Series is equipped with a shutoff valve to shut off air when equipment is not in operation. This can reduce unnecessary air consumption and conserve energy on an equipment-by-equipment basis.

Understand Air Quality

Pressure loss and condensation are examples of troubles that occur with air. The MP-F Series monitors air conditions with pressure, temperature, and humidity sensors to detect problems due to pressure loss and condensation before they occur and alert operators of any abnormalities.

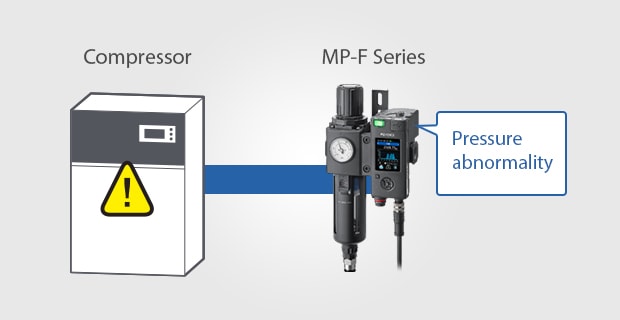

Example Problem 1: Pressure Loss

[Example cause] Decreased/insufficient compressor capacity.

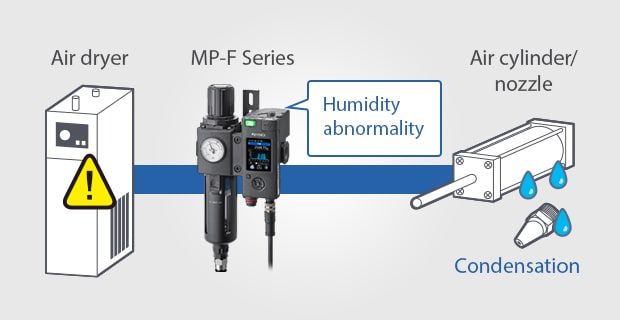

Example Problem 2: Condensation

[Example cause] Decreased/insufficient air dryer capacity.
