The TM-X Series
Digital Profile Projector

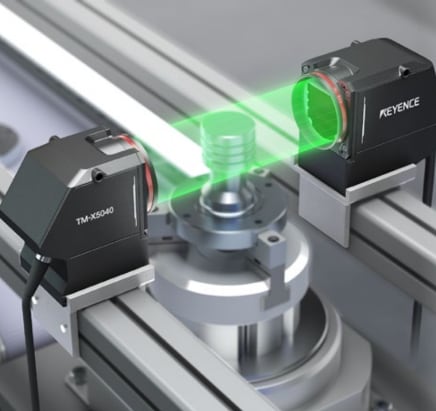

Ultra Precision: TM-X optical micrometer uses silhouette-based analysis for guaranteed accuracy during inline measurement.

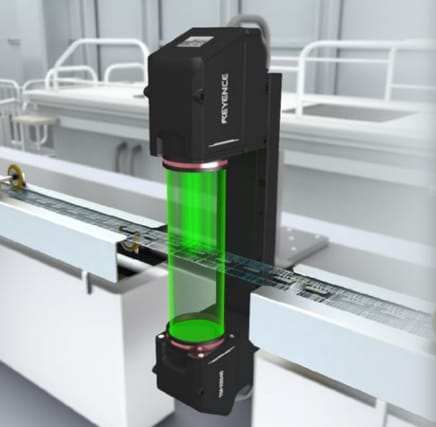

Production-Ready: Operating as an inline shadowgraph, the TM-X can be easily installed into your line and quickly configured to start producing measurements.

Download Catalogue

Target Position Correction

Perform 100% Inline Inspection of Any Size Part; Auto-Adjusts for Target Misalignment.

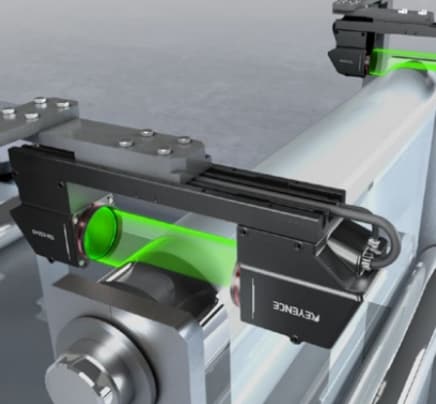

Robust Design for Inline Use

Dust- and water-resistant IP64 enclosure while still maintaining Industry's Fastest Exposure Time: 25µs.

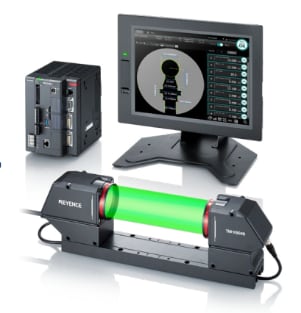

Easy to Setup and Use

Pre-Calibrated Telecentric Profile Inspection System: No maintenance required.

RECOMMENDED ITEMS

TM-X5000 Series Telecentric Measurement System Catalogue

[File type]PDF:6.06MB
