Instant Measurement Series - The Next Generation Optical Comparator

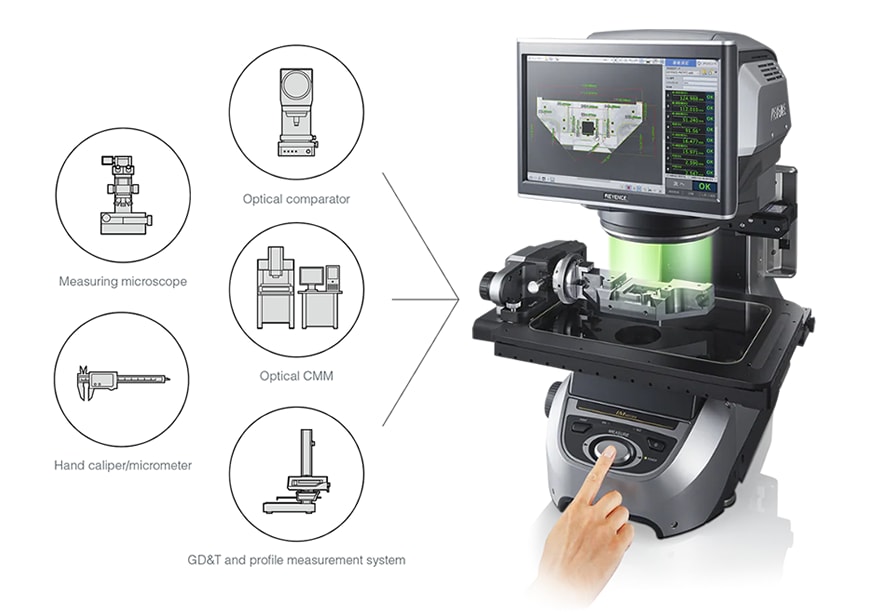

Incorporating the functionality of numerous conventional devices including:

- Shadowgraph - Optical Comparator - Profile Projector - CMM - Measuring Scope - Caliper -

The IM Series Image Dimension Measurement System is a completely new optical comparator that performs dimensional measurement with a simple “Place and Press” operation.

  • Rapid Dimension Measurement and Analysis

  • Major Problems in Industrial Measurement:

    • Slow and time-consuming measurement.
    • Inconsistent results and operator based variance.
    • Complicated processes and difficult data collection.

    Solutions that the IM Series Offers:

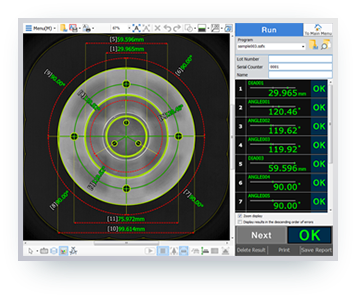

    • Measure up to 300 dimensions on a part within 3 seconds.
    • Consistent measurement results regardless of user.
    • Intuitive interface allows for easy set up and data storage.
