Dimension Measurement Machine

The IM Series image dimension measurement machine is a new measurement system that performs dimensional measurement with simple “Place and Press” operation.

Measure 300 part features in seconds.
Eliminate subjectivity between operators.
Automatic data recording and generation of test reports.
Easy-to-use software, fast processing and accurate measurements.

View Catalogue

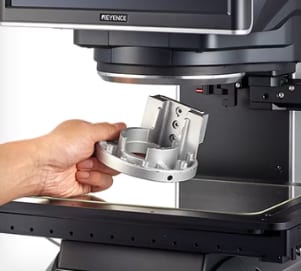

Easy Measurement for Complex Parts

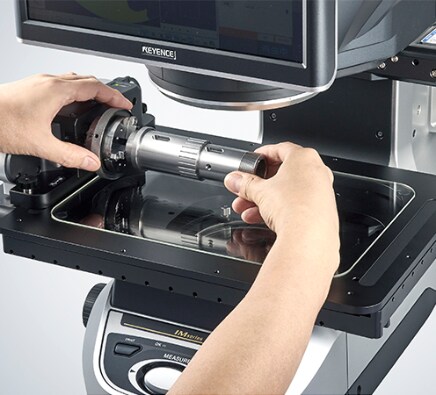

Optional Rotary Unit for 360' Measurement

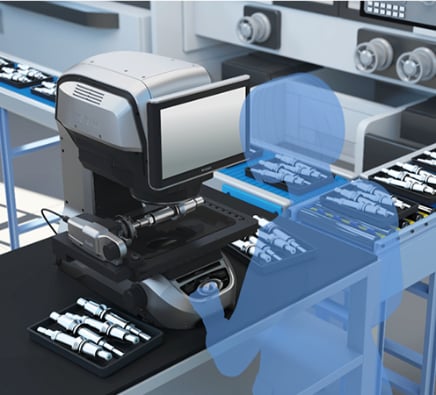

Use Case: Incoming Inspections

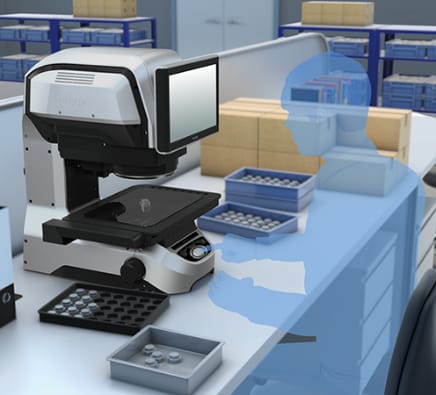

Use Case: In-process Inspections of Samples and Parts

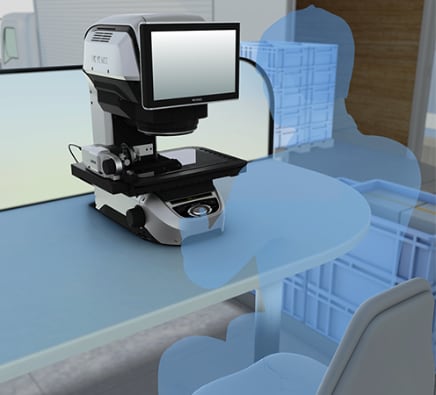

Use Case: Pre-shipping Inspections

Fast

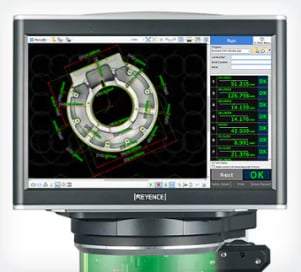

With the IM-Series, you can automatically carry out dimension measurement on up to 300 part features in seconds.

Easy

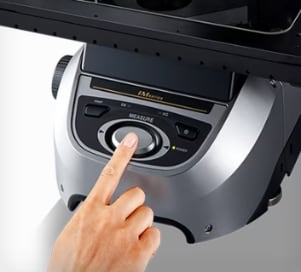

The intuitive interface of the measurement machine means anyone can measure a part by simply placing it on the stage and pressing the 'measure' button.

Consistent

Achieve consistent, high-accuracy measurement results, regardless of the operator. No specialist expertise required.

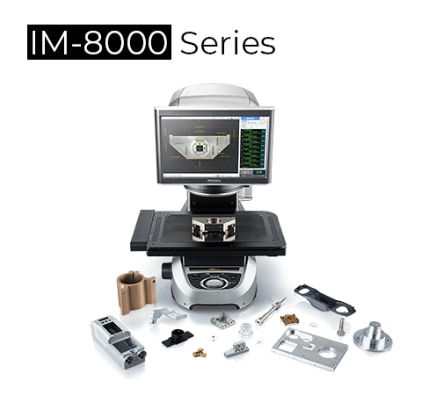

For more information on the IM-8000 Series dimension measurement machine, download the catalogue.

Download Catalogue
