Instant Measurement Machine

The IM Series part measurement machine is a new measurement system that performs dimensional measurement with simple “Place and Press” operation.

  • Measure 300 part features in seconds.
  • Eliminate subjectivity between operators.
  • Automatic data recording and generation of test reports.
  • Easy-to-use software, fast processing and accurate measurements.

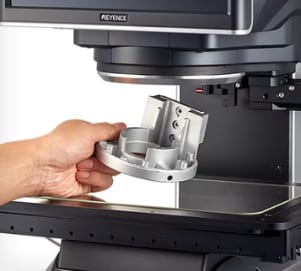

Easy Measurement for Complex Parts

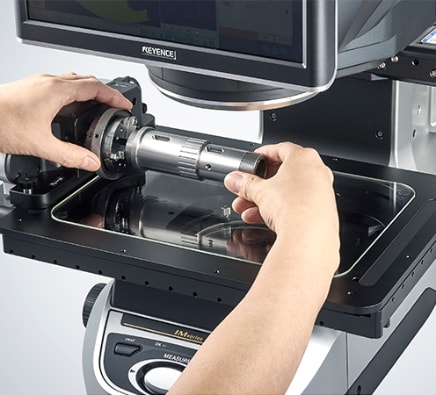

Optional Rotary Unit for 360' Measurement

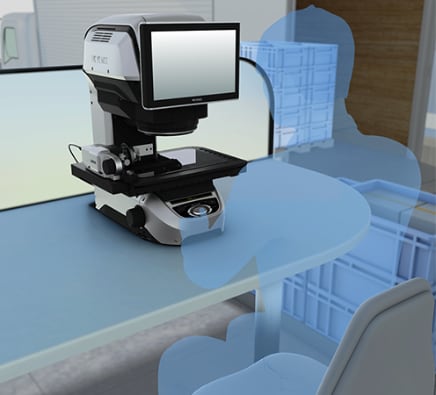

Use Case: Incoming Inspections

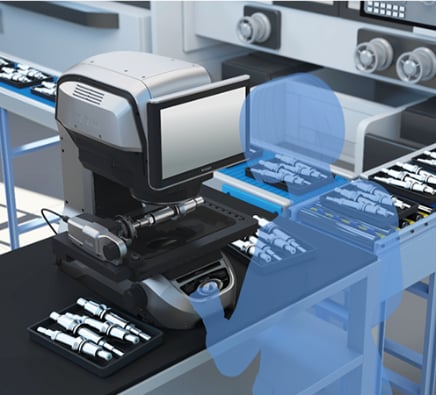

Use Case: In-process Inspections of Samples and Parts

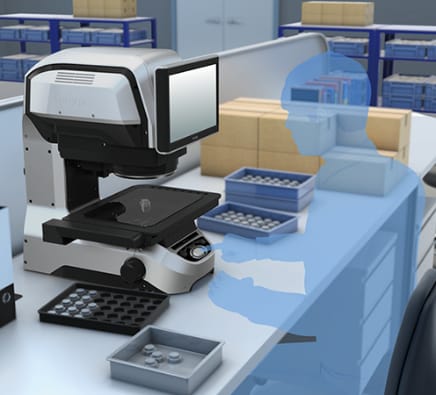

Use Case: Pre-shipping Inspections


With the IM-Series automated measuring system, you can automatically measure up to 300 part features on up to 100 parts in seconds. No need to use multiple types of measuring equipment.

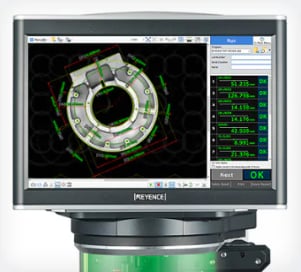

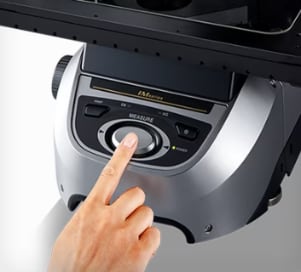

The intuitive interface of the system means anyone can carry out part inspection simply by placing it on the stage and pressing the 'measure' button. Suitable for many applications including angle measurement, gear measurement and more.


Achieve consistent, high-accuracy part measurement results, regardless of the operator. No specialist expertise required.

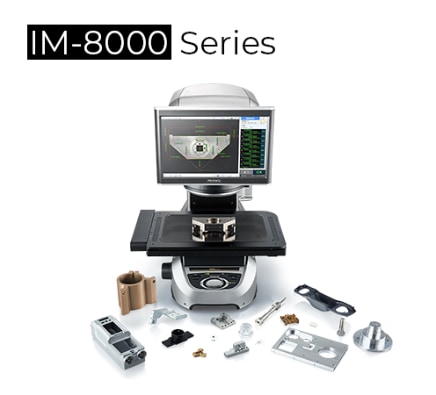

For more information on the IM-8000 Series coordinate measure machine, download the catalogue.


IM-8000 Series Image Dimension Measurement System Catalogue

IM-8000 Series Image Dimension Measurement System Catalogue
  • [File type]PDF:7.85MB
