Measurement Projector

The IM Series profile projector is a new measurement system that performs dimensional measurement with simple “Place and Press” operation.

  • Measure 300 part features in seconds.
  • Eliminate subjectivity between operators.
  • Automatic data recording and generation of test reports.
  • Easy-to-use software, fast processing and accurate measurements.

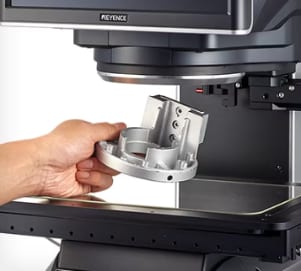

Easy Measurement for Complex Parts

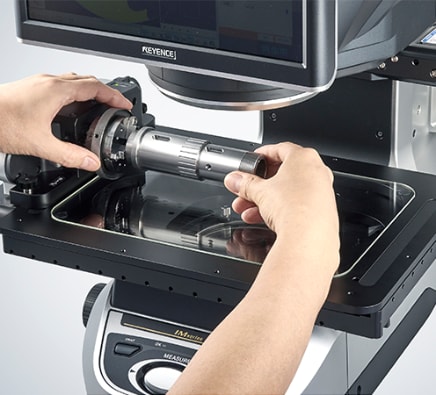

Optional Rotary Unit for 360' Measurement

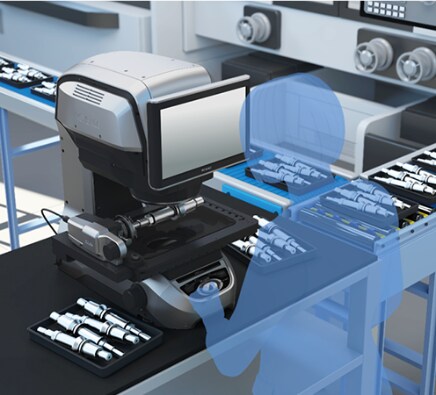

Use Case: Incoming Inspections

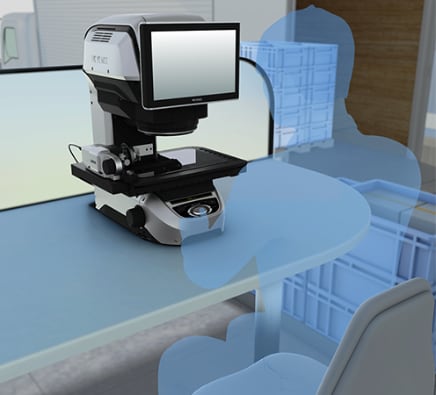

Use Case: In-process Inspections of Samples and Parts
Use Case: Pre-shipping Inspections

Fast

With the IM-Series measurement projector, you can automatically measure up to 300 part features on up to 100 parts in seconds.

Easy

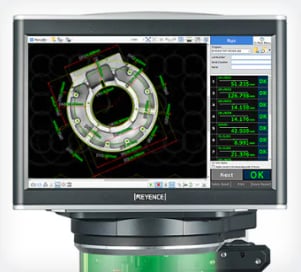

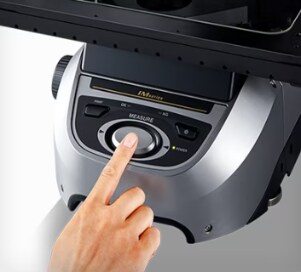

The intuitive interface of the profile projector means anyone can carry out part inspection simply by placing the parts on the stage and pressing the 'measure' button.

Consistent

Achieve consistent, high-accuracy measurement results, regardless of the operator. No specialist expertise required.

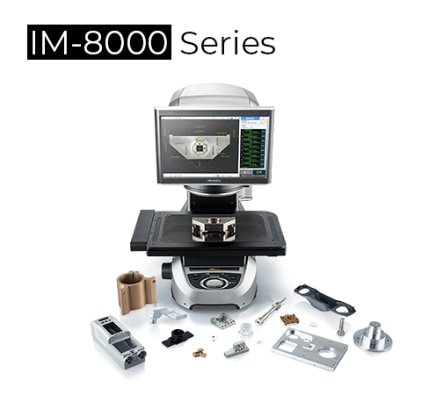

For more information on the IM-8000 Series measurement projector, download the catalogue.
