Next Gen Shadowgraph

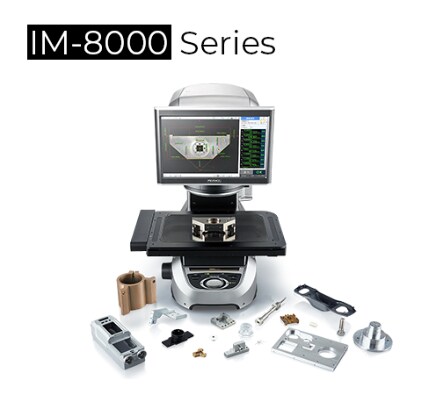

The IM Series shadowgraph is a new measurement system that performs dimensional measurement with simple “Place and Press” operation.

Measure 300 part features in seconds.
Eliminate subjectivity between operators.
Automatic data recording and generation of test reports.

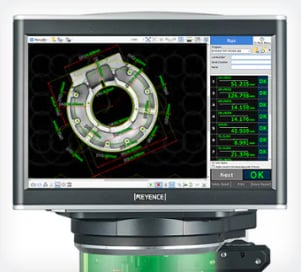

Easy-to-use software, fast processing and accurate measurements.

View Catalogue

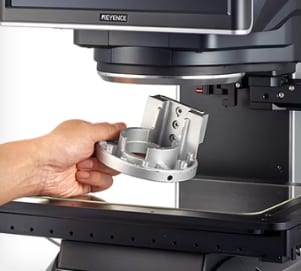

Easy Measurement for Complex Parts

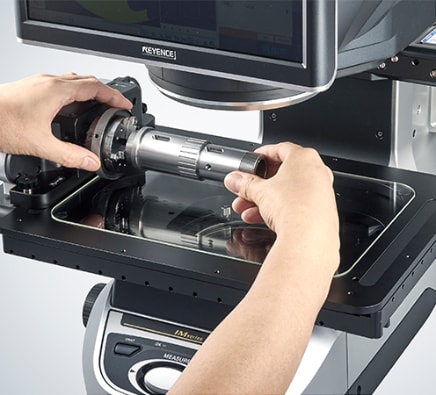

Optional Rotary Unit for 360' Measurement

Use Case: Incoming Inspections

Use Case: In-process Inspections of Samples and Parts

Use Case: Pre-shipping Inspections

Fast

With the IM-Series shadowgraph, you can automatically measure up to 300 part features on up to 100 parts in seconds.

Easy

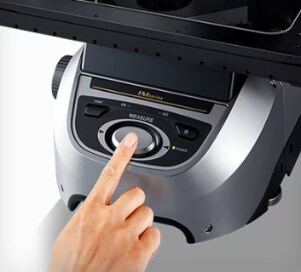

The intuitive interface of the system means anyone can carry out shadowgraph measurement simply by placing it on the stage and pressing the 'measure' button.

Consistent

Achieve consistent, high-accuracy measurement results, regardless of the operator. No specialist expertise required.

For more information on the IM-8000 Series next gen shadowgraph, download the catalogue.

Download Catalogue
