GD&T - The Next Generation

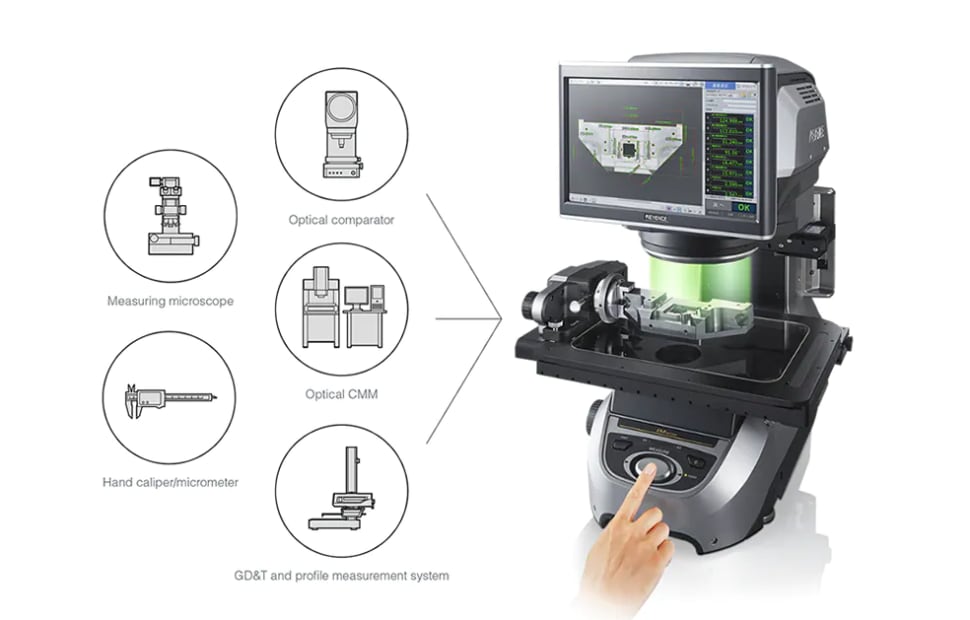

Incorporating the functionality of numerous conventional devices including:

- GD&T Systems - Optical Comparator - Profile Projector - CMM - Measuring Scope - Caliper -

The IM Series Image Dimension Measurement System is a completely new measurement system that performs dimensional measurement with a simple “Place and Press” operation.

  • Rapid Dimension Measurement and Analysis

  • Major Problems in Industrial Measurement:

    • Slow measurement up to minutes
    • Inconsistent results
    • Complicated processes and data collection

    Solutions that the IM Series Offers:

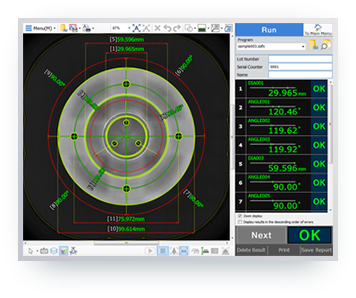

    • Measure up to 300 dimensions within 3 seconds
    • Build-in automated functions eliminate operator error
    • Intuitive interface allows easy set up and data storage
