The IM-8000 Series
Digital Shadowgraph

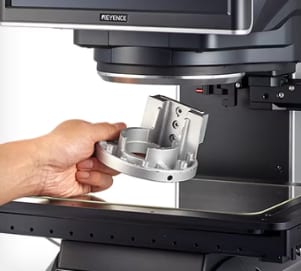

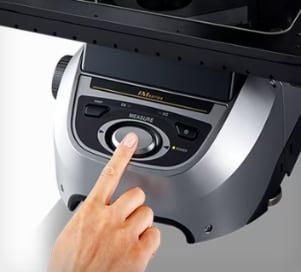

The IM Series Next-Gen Shadowgraph: Performs automatic measurement with simple “Place and Press” operation.

Measure 300 part features in seconds.
Exceptional Edge Detection for 2D Measurements.

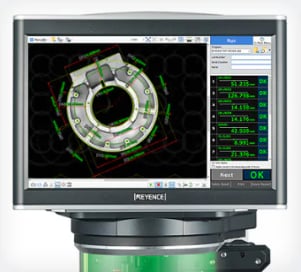

Auto-Record Data & Generate Inspection Reports.

View Catalogue

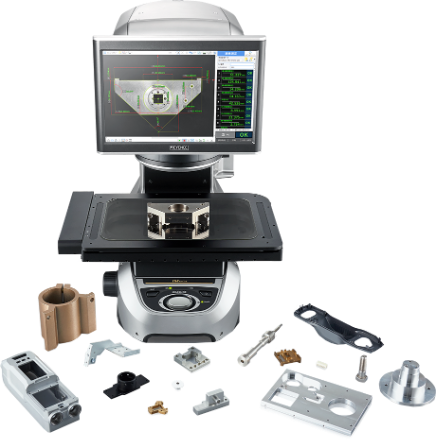

Easy Measurement for Complex Parts

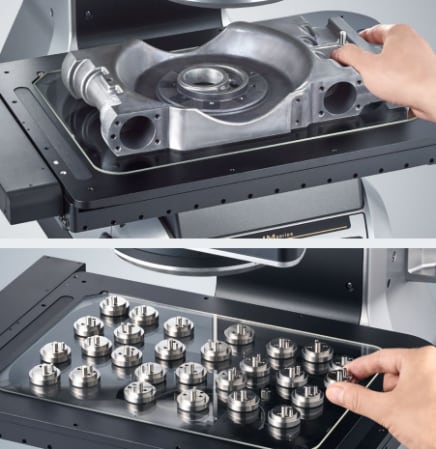

300x200mm stage for any size parts

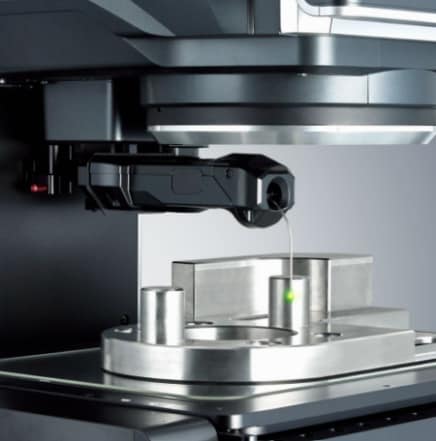

Height Probe for Z axis Measurement

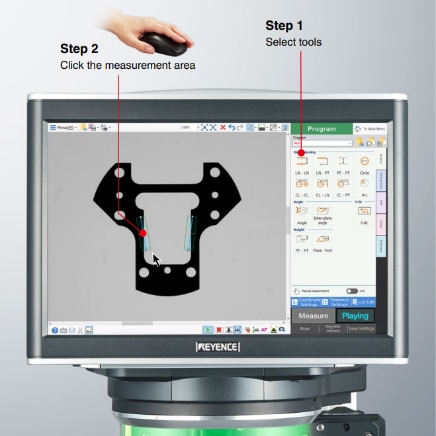

Easy to Setup and Use

Fast

With the IM-Series shadowgraph, you can carry out fast batch measurements in just a few seconds!

Easy

Carry out 2D/3D Measurement with Ease using our Outstanding Shadowgraph Edge Detection.

Consistent

Achieve consistent, high-accuracy comparator measurement results, regardless of the operator. No specialist expertise required.

For more information on the IM-8000 Series shadowgraph, download the catalogue.

↓
