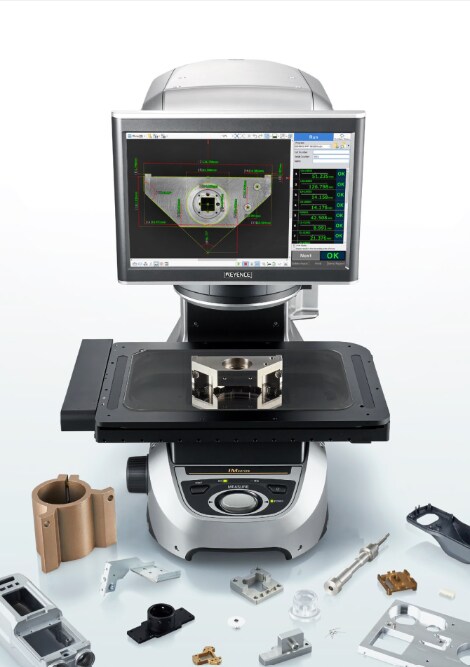

The IM Series Instant Measurement System is a visual inspection system that performs measurements in place of optical comparators, calipers/micrometers, measuring microscopes, and optical CMMs.
After placing the part on the digital optical comparator's stage, just press the button and in just 3 seconds you will receive up to 99 measurements on up to 100 parts with an OK/NG judgment, significantly reducing quality inspection time.
Utilizing the IM Series' advanced optics and high-speed image processing technology, measurements are now consistent regardless of who's operating the system.
Complete inspection and analysis reports can be automatically saved on the system without having to manually record the data by hand.
Spring
Lathe Processing
Threads
Plastic with Toplight
For more information please download the brochure.
