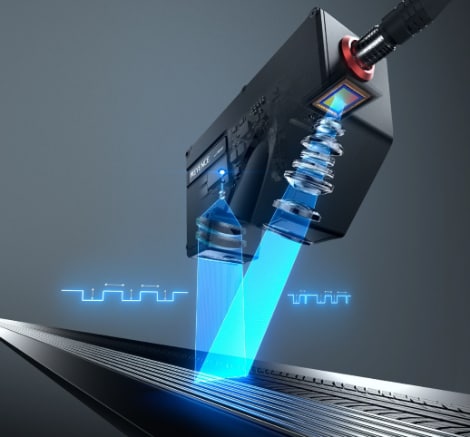

• Laser Profile Measurement Sensor

  • Laser Profile Measurement Sensor

    • High precision measurements performed inline
    • Compatible with all materials
    • Set up in 3 easy steps
    • 3200 points/profile


    Learn More by downloading our catalogue below:
  • Maximising resolution and target detection

    To improve the resolution of the sensor, the number of pixels on the CMOS needs to be increased, which can be accomplished by making each pixel smaller. But smaller pixels can result in insufficient light to create an accurate profile of some target shapes or surfaces. For the LJ-X series, we’ve implemented new technology to create a laser profiler capable of high resolution measurement on any target.

  • Preserve Shape function

    This is a filter that removes noise components caused by variations in reflected light, allowing the shape of the target to be maintained.

  • Irregular Reflection Removal function

    The effects of stray light from glossy targets are suppressed, making it possible to render their shape accurately.

  • 3D position correction

    Once the system is configured, the alignment and tilt of each part passing the sensor is calculated by comparing to a reference image. Each measurement tool will automatically latch on to the correct location, and eliminate any errors due to part misalignment.

  • Edge contour measurement

  • Tire shape / DOT code inspection

  • Smartphone assembly

  • Coplanarity inspection & Pulley shape measurement

  • WHY KEYENCE?

    KEYENCE has been an industry leader in sensing technology since 1974. KEYENCE's direct sales team visits customers with live demo equipment to find the best possible solution for all applications.

Learn More about our Laser Sensor by downloading the catalogue below:
