Lenses
(for Machine Vision) Vision System Peripheral Equipment CA-L Series
![](/Images/peripheral_mv_img_01_1863311.png)
Ultra High-Resolution, Low-Distortion Lens Supporting 4/3" ImagesOur flagship lens supporting 21 megapixel, 4/3", ultra high-pixel cameras

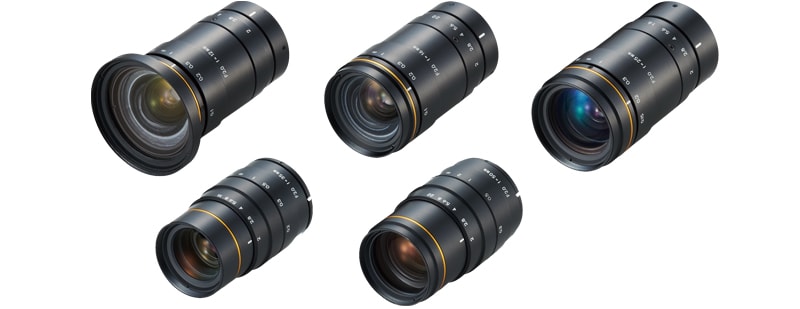

CA-LHE
![](/Images/peripheral_ca_lhe_img_01_1863237.jpg)
High-resolution design
Even though these lenses support full-size C-mounts, they guarantee a resolution of 160 cycles/mm at the centre of the lens, which enables the capturing of images with higher contrast. These lenses bring out the full capabilities of 4/3", 21 megapixel cameras.
21 megapixel camera image
![](/Images/peripheral_ca_lhe_img_02_1863238.jpg)
CA-LHE
A clear image with minimal distortion right up to the edge of the image is obtained.
![](/Images/peripheral_ca_lhe_img_03_1863239.jpg)
CA-LHW (lens supporting 1" images)
At the edge of the image, both the contrast and distortion are reduced.
![](/Images/peripheral_ca_lhe_img_04_1863240.jpg)
4/3" image dedicated design
Even though these lenses support 4/3" images, they attain a TV distortion of 0.02% (CA-LHE16). What’s more, even though they have a minimum WD of 0.1 m (CA-LHE12 and CA-LHE16), they reduce aberrations over a wide range all the way to nearly infinite far shooting.

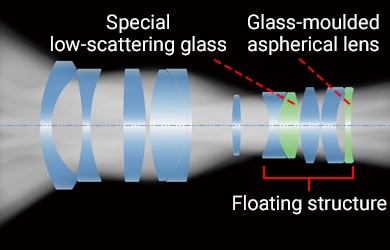

CA-LHE16 lens arrangement diagram
![](/Images/peripheral_ca_lhe_img_05_1863241.jpg)
Aspherical lens
![](/Images/peripheral_ca_lhe_img_06_1863242.jpg)
