# Measuring Static Electricity

Before taking any static elimination measures, it is necessary to determine whether static electricity is actually present. The starting point is detecting static electricity. However, static electricity is not visible.
If there is a place with a visible problem, such as adhesion of a sheet or dust, you can tell that there is static. Using a dedicated measuring instrument can help you find static in places where there are no visible problems. A measuring instrument also allows you to see how strong the static is in a certain location.
First, let’s look at measuring instruments.

## What is an electrostatic sensor?

Electrostatic sensors are measuring instruments designed to detect static electricity. You can simply point the electrostatic sensor at the target to measure the amount of static electricity.

## Types of electrostatic sensors

Instruments used to measure static electricity are officially called surface potential sensors or electrostatic field meters.
The figure below shows some examples. The example on the left shows measurement of static electricity on a PCB. The amount of static electricity can be easily measured just by pointing the sensor at the PCB.
Static electricity measurement at manufacturing sites may have different requirements: measuring multiple spots in a production line, measuring a certain location continuously and recording it, etc. Electrostatic sensors also come in various types for different applications, so it is important to select the appropriate sensor for the purpose and conditions.

Hand-held-type Electrostatic Sensor

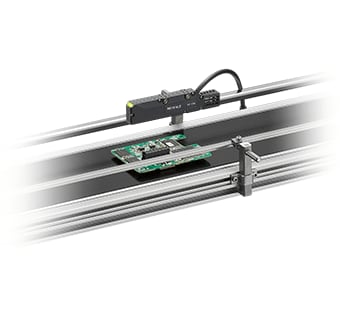

Inline electrostatic sensor

## Amount and unit of static electricity

What is unit used to express the amount of static electricity? The unit is voltage. The amount of static electricity is indicated by how big or small the voltage number is.
Suppose you measured something using an electrostatic sensor. Product A had a voltage of 100 V. Product B had a voltage of 500 V. In this case, product B, which has a higher voltage, has more static electricity and stores more static charges. The higher the voltage, the stronger the charge. The smaller the voltage, the smaller the charge.

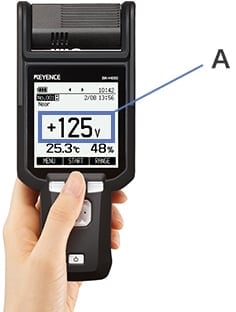

1. A: An electrostatic sensor indicates voltage as shown here, which is the amount of static electricity.

### Precautions for using a surface potential meter

There are two points that need to be noted regarding technique and measurement environment when using a surface potential meter.

Precautions for measurement
Differences in measuring distance and measurement target size between the time of initial adjustment and actual measurement, will impact the measured values.
• Distance dependency
The number of lines of electric force that reach the measuring instrument changes with the distance to the measurement target. Therefore, the measurement value will decrease if the measuring distance increases at the time of actual measurement compared to the reference distance during adjustment, and vice versa.
• Target size-dependent measurement

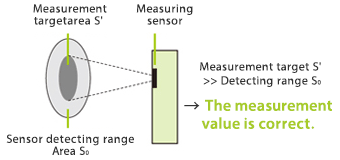

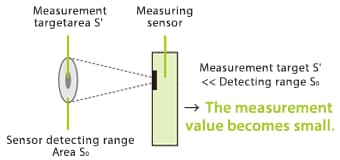

Many measuring instruments convert measurements with an assumption that the measurement target is infinitely large. If the measurement target is sufficiently larger than the measuring range of the measuring sensor, the correct measurement value is displayed. However, if the target is smaller than the detecting range, a smaller measurement value will be displayed. (Figure 5)
Precautions for measurement environment

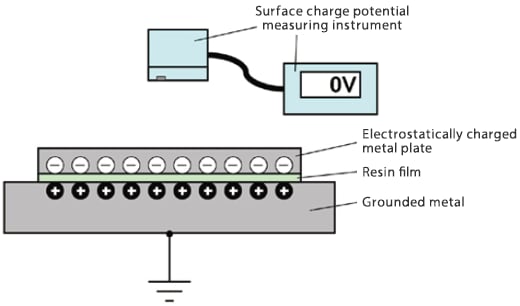

What you need to be aware of when measuring the surface potential of a film attached to a metal plate or metal plates with a film in between is that even when these are charged, the potential will still be close to 0 V. Figure 6 shows an example of metal plates with a resin film in between. While the metal plate is charged, inductive charge appears on the grounded metal side, making it look like it is not charged by counteracting it. For this reason, caution is required when the measured target is in contact with grounded metal.

## Measuring method with reduced distance dependency

### Surface potential meter with voltage feedback control

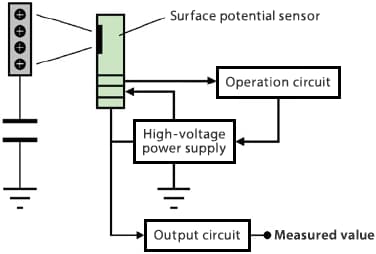

A surface potential meter detects the electric field strength instead of the potential, so it has distance dependency. A surface potential meter with voltage feedback control gives potential to the surface potential meter like ordinary surface potential meters but adjusts the output voltage of high-voltage power supply so that the sensor output is zeroed, which means that the electric field strength detected by the surface potential sensor is zero. The electric field strength detected by the surface potential sensor is zero when the voltage of the measured target and the sensor voltage are the same. In other words, the output voltage of the high-voltage power supply is the voltage of the measured target. Figure 8 shows a configuration example of a surface potential meter with voltage feedback control.

A surface potential meter with voltage feedback control has the advantage of reduced distance dependency, but its measurable voltage range is restricted to the range of voltage that can be output by the high-voltage power supply.
However, there are also types that control the output voltage of the high-voltage power supply and measure the surface potential of the measured target based on the output voltage and the surface potential meter’s output value. The measurable voltage range of these types is not restricted by the output voltage range of the high-voltage power supply, which allows for measurement over a wider voltage range.

## Other measurement methods

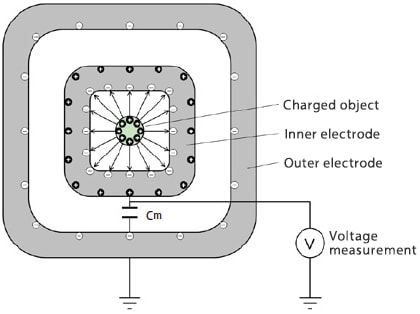

Aside from using a surface potential measuring instrument as introduced earlier, there are three other ways to measure static electricity:

1. Leaf electrometer
2. Coulomb meter (current integration)

### 1. Leaf electrometer

You can check whether an object is electrically charged or not by putting a leaf electrometer close to the object.
Figure 1 shows an overview of a leaf electrometer. It has a metal electrode at the top and a metal rod connected to it inside a glass jar. There are metal leaves at the tip of the metal rod.
If you move a charged object close to the metal electrode, an electrical charge of a polarity opposite to that of the charge object is induced to the electrode due to electrostatic induction. A charge of the same polarity as that of the charged object appears on the metal leaf side. Since the leaves are charged with the same polarity, the leaves spread due to the repelling Coulomb force acting on the charges. The stronger the charge of the charged object is, the wider the leaves spread. The leaves close when the charged object is moved away, as there is no longer charge induction. Since this method requires no power supply, it is easy to use. However, it is affected by the direction of gravity, is not able to tell the polarity of charge on its own, and is not able to quantify the strength of the charge, so it is rarely used at product sites.

### 2. Coulomb meter (current integration)

A Coulomb meter measures the amount of electric charge by the probe touching the charged object. It works similar to a tester, but it can measure minute current (charge) that cannot be measured by normal testers. Figure 2 shows an overview of a Coulomb meter. To measure the amount of electric charge using a Coulomb meter, the charged object must be an object in which charge can move, like a conductor. Additionally, since a charged object loses charge via measurement, the measurement can only be performed once per sample. For these reasons, Coulomb meters are not commonly used. They are used when measuring the amount of electric charge on small devices, which are difficult to measure using a surface potential meter.
