2D Vision-Guided Robotics 2D VGR series

New Vision-Guided Robotics With Improved Stability

Optimal image creation with vision-guided robotics.

  • Bright, uniform illumination even over a wide field of view
  • Support for multiple pallets and tooling changeover
  • Optimal hardware for on-hand and fixed mount picking

2D VGR series - 2D Vision-Guided Robotics

Vision Systems for pick and place applications, with direct connection and automatic calibration for most major robot manufacturers.

View Catalogue VS Series Vision-Guided Robotics Catalogue

Price

Ask KEYENCE

+44(0)1908-696-900

+353-1-800-813-031

Features

Bright, Uniform Illumination Even Over a Wide Field of View

With a wider field of view, brightness can be uneven with a noticeable difference in intensity between the centre and the edges of the screen.
Advanced imaging technologies such as overdrive lighting with high intensity smart ring illumination and HDR capturing help to minimise such differences even with a wide field of view.

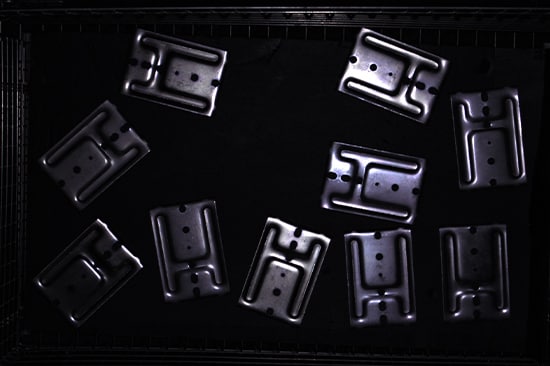

Before

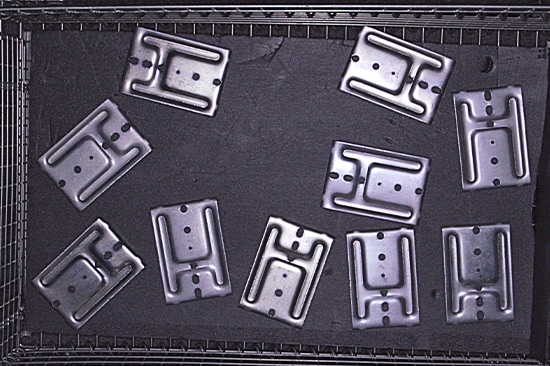

After

Support for Multiple Pallets and Tooling Changeover

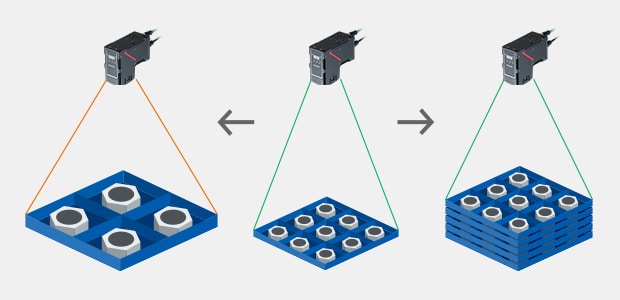

ZoomTrax automatically changes the field of view to suit the size of the target, and automatic focusing makes it possible to handle pallets with different heights, allowing for usability in a wide variety of production environments without changing lenses.

Optimal Hardware for On-Hand Picking

A wider range of on-hand applications is possible thanks to on-robot PoE connectivity, IP67 environmental resistance, and a lightweight C-mount design.

  • 1
    Connects to internal wiring, which prevents cable breakage
  • 2
    Robust IP67 enclosure rating
  • 3
    Lightweight C-mount design option

Outstanding Compatibility With a Wide Variety of Robot Manufacturers

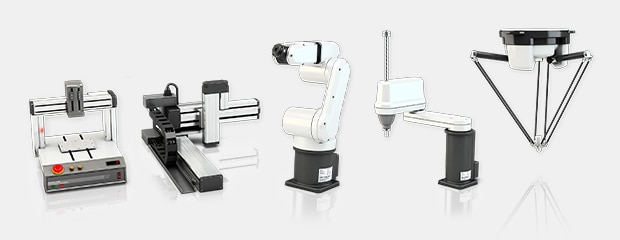

Support for a Wide Variety of Robot Manufacturers

Directly connect to standard robot controllers by selecting the manufacturer name from a list of common robot manufacturers. Take advantage of a single interface for setting up vision-guided robotics even when using different robots for different processes.

Supported robot manufacturers
Supported robot manufacturers ABB ABB DAIHEN DENSO EPSON FANUC HIRATA
DAIHEN IAI JANOME KAWASAKI KUKA MITSUBISHI NACHI
DENSO STAUBLI SHIBAURA MACHINE UNIVERSAL ROBOTS YAMAHA YASKAWA MOTOMAN Custom
EPSON
FANUC
HIRATA
IAI
JANOME
KAWASAKI
KUKA
MITSUBISHI
NACHI
STAUBLI
SHIBAURA MACHINE
UNIVERSAL ROBOTS
YAMAHA
YASKAWA MOTOMAN
Custom

Fast and Accurate Calibration for All Users
Auto-Calibration

Time-consuming calibration can be automatically completed with a single click, ensuring the same accuracy and startup stability for all users.

Before

Conventional problems

  • Accuracy varies between operators
  • Difficult to readjust for installation misalignment
  • Difficult to reproduce the image in different installation locations due to variations in ambient conditions

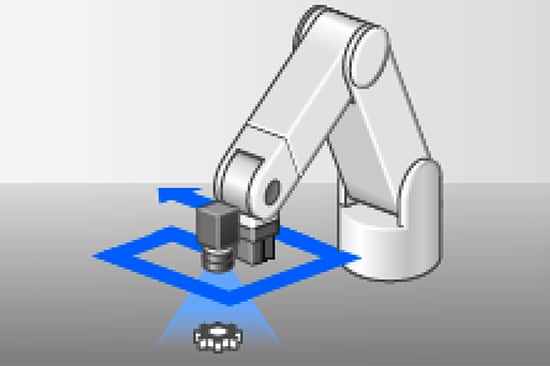

After

Solutions provided with KEYENCE vision-guided robotics

  • High accuracy regardless of operator
  • Quick calibration to fix issues caused by misalignment
  • Easy operation with a single click jogging robot to all required locations

Simplified Robot Operation Support

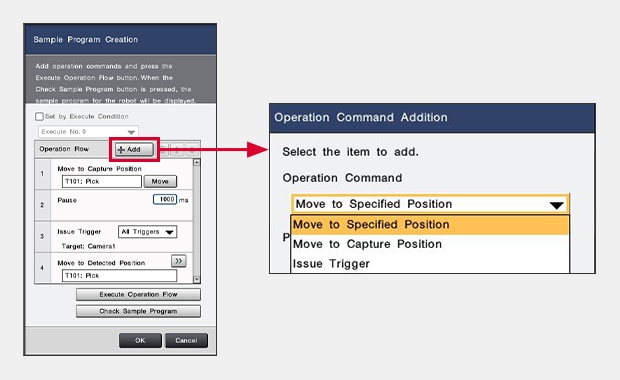

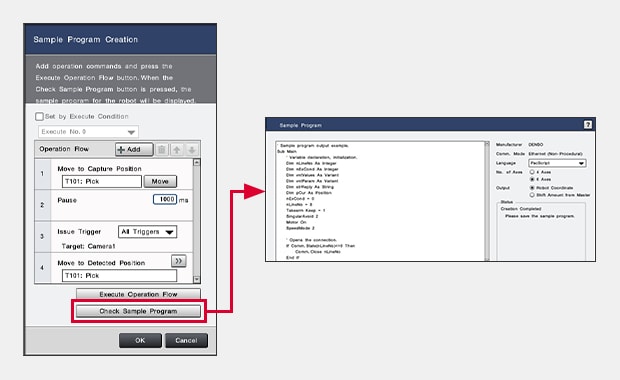

Robot programs can be created automatically and easily by specifying the operation flow.

Easy configuration just by choosing the desired robot operation.

Robot manufacturer–specific programming languages.

Powerful Search Tools for Impressive Performance, Speed, and Accuracy

Enjoy stable position detection only available from an experienced vision system manufacturer!
Enables accurate searching even if capture conditions change from those of the registered image.

Various Simultaneous Inspections

Add other inspections as needed, including character recognition, appearance inspection, and product type differentiation.

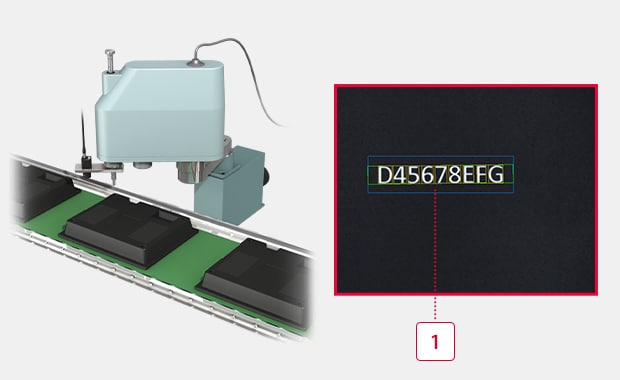

Identification Inspection (OCR, 1D/2D Codes)

Position detection and character reading are performed at the same time.

  • 1
    Character recognition

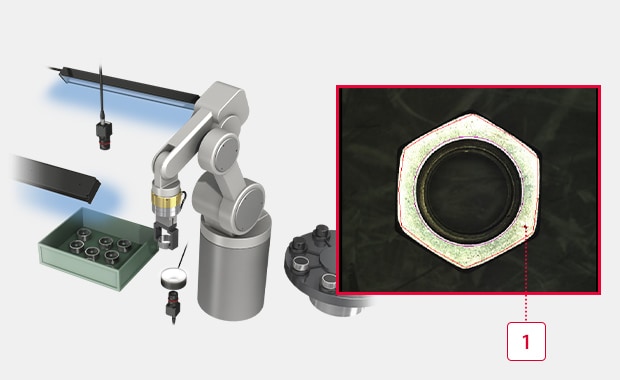

Appearance Inspection

After picking, products are inspected and rejected if defects are found.

  • 1
    Surface defect
