Photoelectric Sensors

Photoelectric sensors utilise light intensity-based detection principles to detect target presence/absence. There are several different types of photoelectric sensors, including reflective, retro-reflective, and thru-beam models. Photoelectric sensors offer a variety of benefits, including durability, application versatility, ease-of-use, and low cost.

Include Discontinued Series

Products Lineup : Photoelectric Sensors

LR-X series - Digital CMOS Laser Sensor

Digital CMOS Laser Sensor LR-X series

The LR-X Series is a remarkably small laser sensor capable of detecting targets based on position and is unaffected by colour, surface finish, or shape. Impressive durability is achieved with its food-grade stainles steel housing (SUS316L), high IP ratings, and guarded cable. Position changes as small as 0.5 mm are possible, along with automatic and real-time intensity adjustment to ensure stable detection on any target.

Catalogues Price

Features

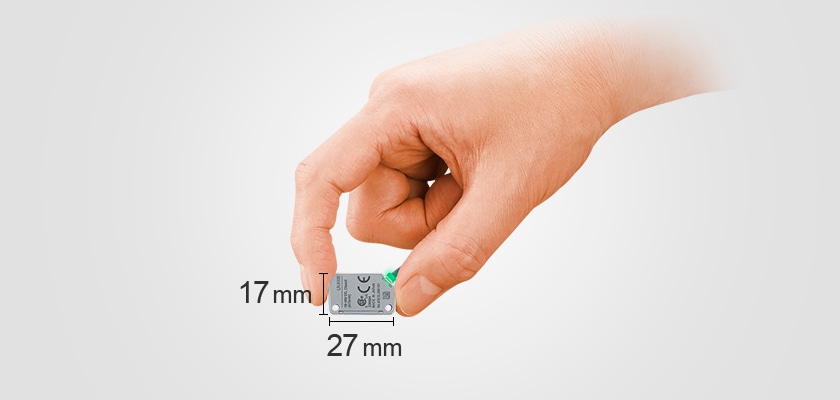

Compact & Robust Design for Use Anywhere

Whether building a new machine or retrofitting an older one, the ultra-compact size of the LR-X Series makes it easy to integrate into any space. The metal housing and rugged design also ensure it will last in any environment.

Stable Detection of Any Target
Minimum Detectable Position Change: 0.5 mm

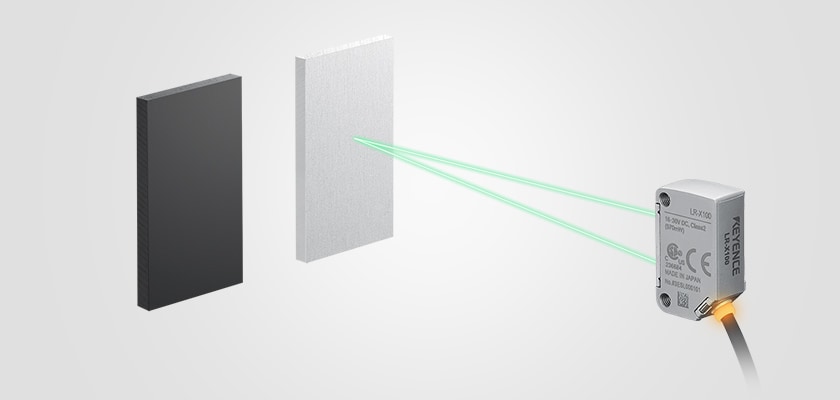

The LR-X Series detects targets based on position, not light intensity. This allows for stable detection of targets regardless of colour, surface finish, or shape. This allows the LR-X Series to be used in a wide variety of applications, including those with small position changes.

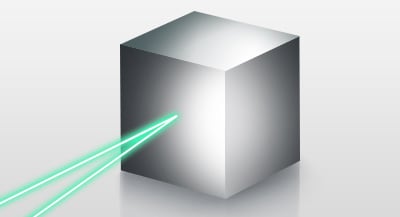

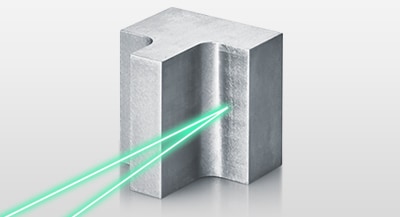

Shiny Metals

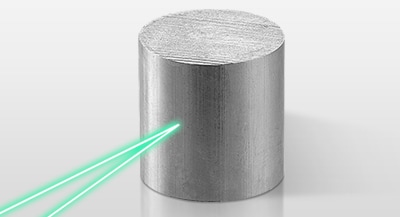

Rounded Surfaces

Black/Dark Targets

Varied Colours

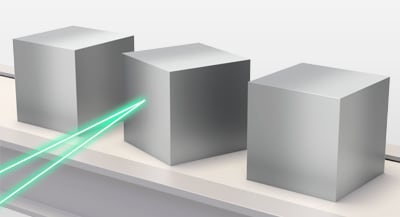

Angled Targets

LR-T series - Self-contained TOF Laser Sensor

Self-contained TOF Laser Sensor LR-T series

The LR-T Series of reflective sensors represents a seamless fusion of innovative technology and robust functionality.

Catalogues Price

Features

Superior Detection Capabilities

The LR-T is designed to detect at long ranges while remaining highly stable. This is achieved due to the HS2 technology used, a combination of Time of Flight detection and a custom integrated circuit. Additionally, the interference prevention and Datum Function allow users to maximize this sensors capability in any situation.

Easy to Use

The LR-T Series is simple to install and calibrate. Flexible mounting options, a visible beam spot, push button teach, and an easy to read display allow for quick setup. Even at long distances, constant feedback is provided with the LR-T's highly visible status indicator.

LR-Z series - Self-contained CMOS Laser Sensor

Self-contained CMOS Laser Sensor LR-Z series

Laser sensor capable of detecting targets based on both position and contrast (detectable distance: up to 500mm).

Catalogues Price

Features

Best Detection Ability in its Class

The LR-Z's unique U.C.D. Function allows for stable detection of clear, metallic, or dark targets. This series can also detect purely based on distance, regardless of shape, colour, or surface finish.

Durable & Long Life

The IP68/69K rating means the LR-Z is ready for the roughest of factory environments. Wash-down, oil spray, and many corrosives are no match for the stainless steel body. Additionally, physical impact or even overtightening are not a concern because of the highly durable design.

Simplified Operation

Simple setup and easy operation are at the core of the LR-Z's design. With a simple 1-touch teach, calibrating this sensor is straightforward and quick. A highly visible indicator and a 7-segment display make this sensor very easy to use.

New feature U.C.D. Function Distinguishing a Target From a Background Using the Distance and Received Light

The sensor first registers the distance to the background and the received light, which are used as reference, and then detects the target by sensing that the distance or received light differs from the registered reference when a target comes into the detection area. With the background, stable detection of target is ensured even if the target is a complex shaped object, has changes in colour and surface condition, or is a thin object with a small height difference.

Without Target

With Target

1

Difference in distance
2

Difference in received light

PZ-G series - Built-in amplifier photoelectric sensors

Built-in amplifier photoelectric sensors PZ-G series

High-power, dual LED-type photoelectric sensors for improved performance and ease of use.

Catalogues Price

Features

Complete Lineup of Self-Contained Photoeyes

Reflective, Retro-Reflective and Thrubeam (breakbeam) types are all available in the PZ-G Series. These sensors have the power to blast over 130 ft and the sensitivity to detect even clear targets.

Easy to Use

Simple trimpot calibration and light-on/dark-on capabilities are built into each PZ-G. Additional features like built-in alignment indicators make the PZ-G series very easy to use.

PZ-V/M series - Built-in amplifier photoelectric sensors

Built-in amplifier photoelectric sensors PZ-V/M series

Automatic calibration type. Virtually eliminates all detection and stability problems inherent with conventional photoelectric sensors.

Catalogues Price

PS-N series - Amplifier Separate Type Photoelectric Sensor

Amplifier Separate Type Photoelectric Sensor PS-N series

High environmental resistance & cable extension capabilities provide increased installation versatility

Catalogues Price

Features

Sensitivity Setup and Display Standardisation at the Touch of a Button

Easy configuration

By standardising the received light intensity display of multiple sensors to “100” and “0”, it is easy to tell where an error has occurred because the sensor will not return to the original display value of “100” or “0”.

The sensor where the error occurred is identifiable at a glance.

Electric Wire Cable Allows for Rejoining

Because the sensor head cable is a simple power cable, it can be extended to the desired length. By soldering or using a metal connector, it can be extended to a maximum of 10 m (32.81').

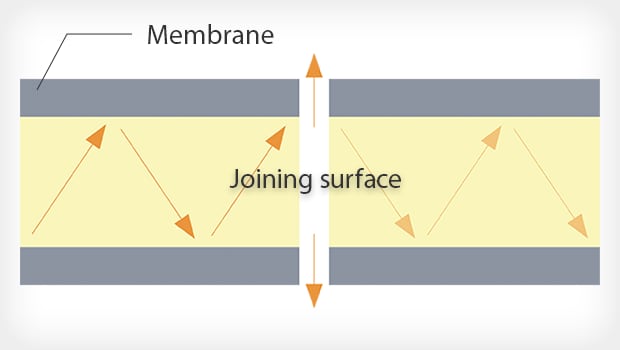

Joining fibreoptic sensors

The light intensity is attenuated by approximately 90% at the joining surface.
With the PS-NEO, no light attenuation occurs even when cables are rejoined.

PX series - Heavy-duty Photoelectric Sensors

Heavy-duty Photoelectric Sensors PX series

The new PX Series heavy-duty industrial photoelectric sensors. Rugged industrial sensors designed for use in harsh environments.

Catalogues Price

Features

Water-resistant and Oil-resistant IP68G/IP69K Structure

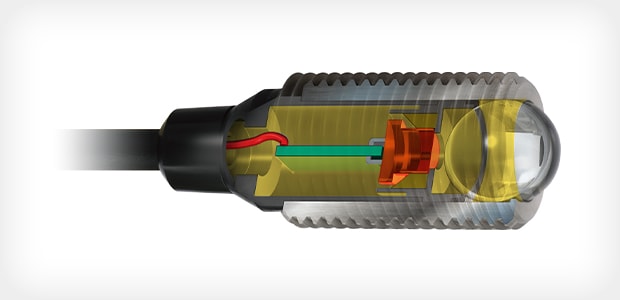

Outstanding resistance to harsh environments thanks to the new "vacuum packed" structure

The sensing heads are completely backfilled under vacuum with transparent epoxy resin. This ensures maximum adhesion with the cable and lens, and eliminates the risk of liquid penetration.

Impressive Thrubeam Strength

High-power MEGA mode

Using the high power MEGA mode, the PX family can operate reliably up to 40 m. In addition to long distance detection, the high power of the PX easily penetrates oil, grease, dust, dirt and other obstructions.

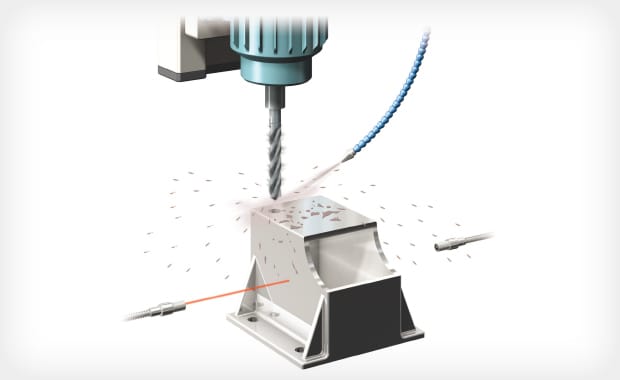

Confirming constant presence of an engine block

Products Lineup : Colour Sensors

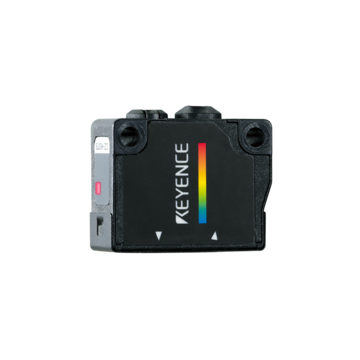

LR-W series - Self-Contained Full-Spectrum Sensor

Self-Contained Full-Spectrum Sensor LR-W series

This Full-Spectrum sensor features unmatched detecting capabilities that allows it to complete the simplest to the most complex applications with ease.

Catalogues Price

Features

Innovative Technology

The unique technology in the LR-W series allows it to analyse the full light spectrum. This series can detect everything from surface finish differences to colour changes that are hard to see with the naked eye.

Flexibility

The LR-W features a 500 mm range, an adjustable beam spot, and high enclosure ratings. This allows the LR-W to solve more applications than any conventional photoelectric sensor.

CZ-V20 series - Digital RGB Sensors

Digital RGB Sensors CZ-V20 series

Simple one-touch calibration with a dual digital display and ability to store up to 8 colours. Colour, lustre and fluorescent/UV sensing heads all connect to CZ-V20 Series amplifier.

Catalogues Price

Features

Detect only specified differences in appearance

The CZ-V20 Series uses a completely different detection principle than other photoelectric sensors. This allows for incredibly stable, high-accuracy colour confirmation and detection of lustre, fluorescence/UV. Each of which are often unstable with conventional photoelectric sensors.

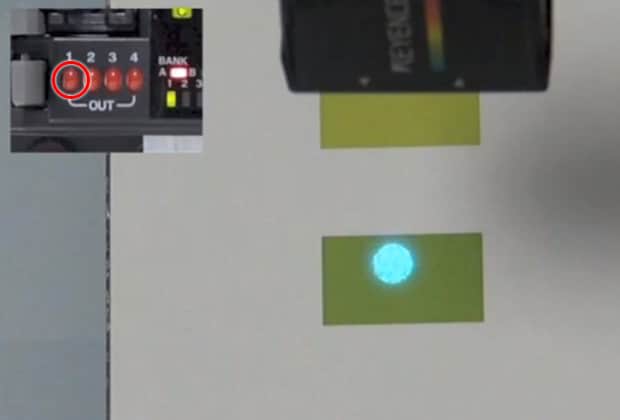

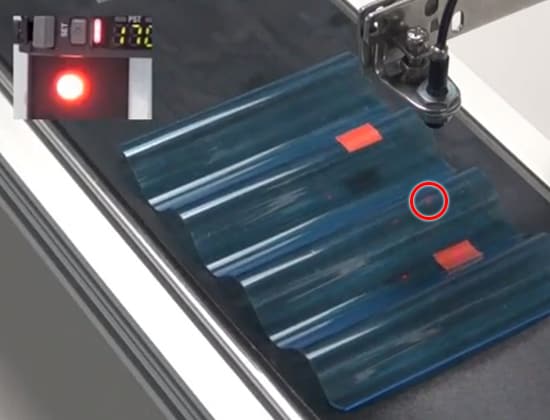

General-purpose photoelectric sensors

False-detection of areas that are not red

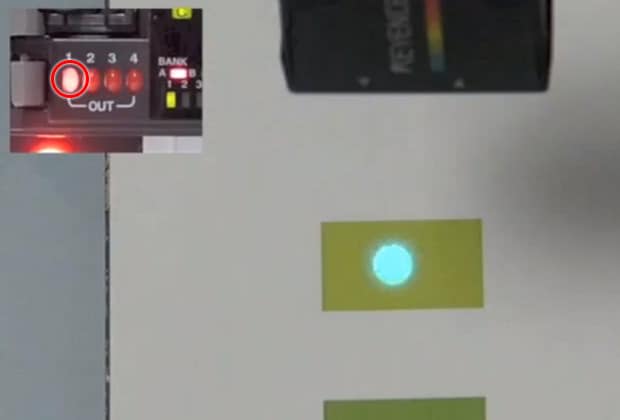

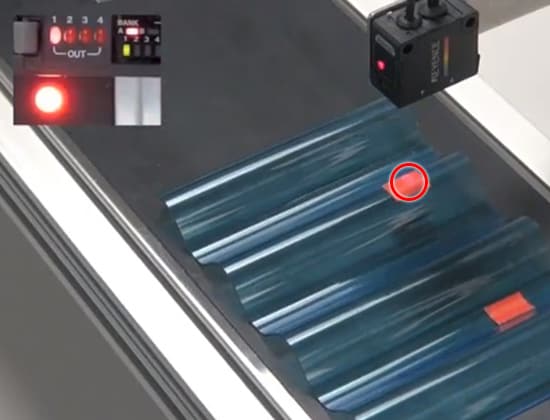

CZ-V20 Series

Detection of red areas only

Detect slight colour differences not easily recognised

The CZ-V20 Series enables high-accuracy colour differentiation with the ability to save up to 8 targets.
