Measurement of die cast products

XY coordinate misalignment can also be measured. The hole position, misalignment from the 3D CAD data, and profile tolerance can be measured.

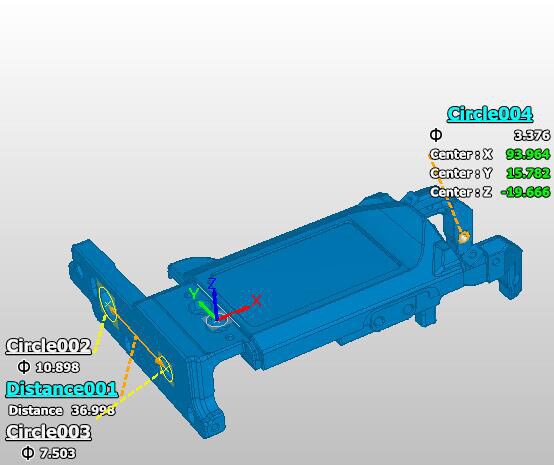

XY coordinate measurement of a hole position

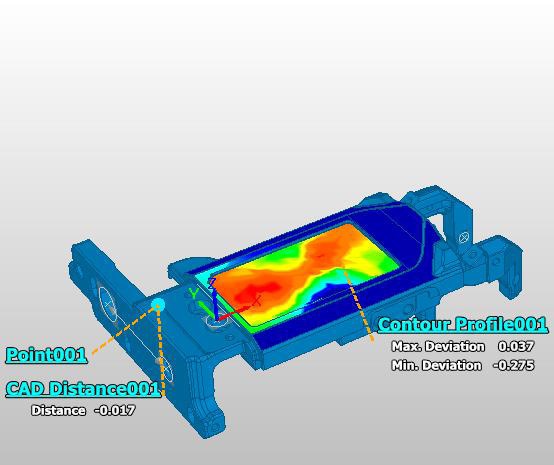

CAD distance/profile tolerance
